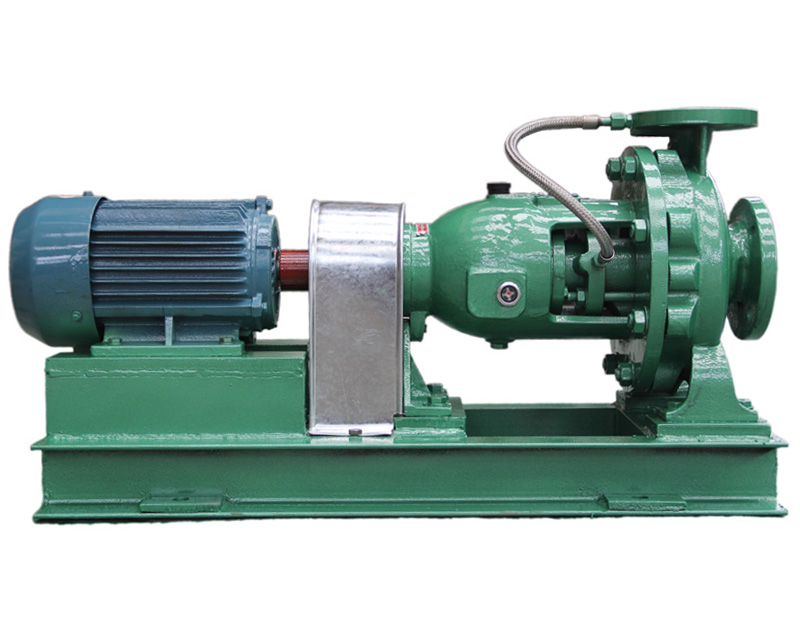

CZ化工流程泵

http://www.fwwww.com.cn/uploadfiles/211.149.195.244/webid348/source/201608/147072815531.jpg

聯系我們 :
固話：0523-87481899
手機：13852635959
分享到：
立即訂購+

CZ泵概述

CZ系列標準化工泵是臥式、單級、單吸離心泵；其尺寸和性能符合DIN24256/ISO2858標準。

FCZ系列標準化工泵的性能范圍包括了IH系列標準化工泵所有性能，其效率、汽蝕性能等指標均超過IH型泵，可與IH型泵進行單機互換。

使用溫度：-80°C ~ 300° C

流量：6m³/h ~ 600m³/h

揚 程：3m ~ 140m

CZ泵用途

輸送低溫或高溫液體；中性或有腐蝕性液體；清潔或內含有固體顆粒的液體。

特別適用于：化學和石油化學工業

型號參數表

型號Model	葉輪型式	泵額定轉速n=2900r/min Speed										泵額定轉速n=1450r/min Speed
		流量	揚程	汽蝕余量	效率	比重y=1.00 Density		比重y=1.35 Density		比重y=1.84 Density		流量	揚程	汽蝕余量	效率	比重y=1.00 Density		比重y=1.35 Density		比重y=1.84 Density
						電機功率及型號 Motor power and type										電機功率及型號 Motor power and type
						kw	電機型號	kw	電機型號	kw	電機型號					kw	電機型號	kw	電機型號	kw	電機型號
HCZ32-160	A	20	36	3.1	62	4	Y112M-2	5.5	Y132S1-2	7.5	Y132S2-2	11	9	1.5	49	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
	B	18	32			4	Y112M-2	5.5	Y132S1-3	7.5	Y132S2-3	10	8							1.5	Y90L-4
	C	47	28			3	Y100L-2	4	Y112M-2	5.5	Y132S2-2	9	7							1.1	Y90S-4
	D	15	20			2.2	Y90L-2	3	Y100L-2	4.0	Y112M-2	6	5
	E	13	14			2.2	Y90L-2	3	Y100L-2	4.0	Y112M-2	6	3
HCZ32-200	A	20	50	2.7	51	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	10	13	1	47	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	18	48			7.5	Y132S2-2	11	Y160M1-2	11	Y160M1-2	9	12							1.5	Y90L-4
	C	16	40			5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2	8	10
	D	15	30			4	Y112M-2	5.5	Y132S1-2	7.5	Y132S2-2	8	8
HCZ32-250	A	20	85	2.1	40	15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	11	20	0.9	37	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	B	20	75			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	10	19					3	Y100L2-4	4	Y112M-4
	C	18	65			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	9	15					2.2	Y100L1-4	3	Y100L2-4
	D	15	50			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	8	11					2.2	Y100L1-4	2.2	Y100L1-4
HCZ40-160	A	30	34	1.5	63	7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	15	8	0.5	60	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
	B	28	30			5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2	15	7							1.5	Y90L-4
	C	16	26			5.5	Y132S1-2	5.5	Y132S1-2	7.5	Y132S2-2	14	6							1.1	Y90S-4
	D	14	18			3	Y100L-2	5.5	Y132S1-2	5.5	Y132S1-2	12	4							1.1	Y90S-4
HCZ40-200	A	34	50	2.4	60	11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	16	13	1.1	57	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	30	48			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	15	12			1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
	C	26	38			5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2	14	9					1.1	Y90S-4	1.5	Y90L-4
	D	22	30			5.5	Y132S1-2	7.5	Y132S2-2	11	Y160M1-2	12	7					1.1	Y90S-4	1.1	Y90S-4
HCZ40-250	A	36	85	6	50	22	Y180M-2	30	Y200L1-2	45	Y225M-2	20	21	2.5	48	4	Y112M-4	5.5	Y132S-4	5.5	Y132S-4
	B	34	80			18.5	Y160L-2	22	Y180M-2	37	Y20L2-2	18	20			3	Y100L2-4	4	Y112M-4	5.5	Y112M-4
	C	30	65			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	16	15			2.2	Y100L1-4	3	Y100L2-4	4	Y100L1-4
	D	26	50			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	13	12			2.2	Y100L1-4	2.2	Y100L1-4	2.2	Y160M-4
HCZ40-315	A	46	140	4	50	45	Y225M-2	55	Y250M-2	75	Y280S-2	22	36	1	45	11	Y160M-4	11	Y160M-4	11
	B	44	130			37	Y200L1-2	45	Y225M-2	75	Y280S-4	22	32			5.5	Y132S-4	11	Y160M-4
	C	40	100			30	Y200L2-2	37	Y200L2-2	55	Y250M-2	20	24			4	Y112M-4	5.5	Y132S-4		Y132S-4
	D	34	80			30	Y200L2-2	30	Y200L1-2	37	Y200L2-2	18	18			4	Y112M-4	4	Y112M-4	5.5	Y100L2-4
HCZ50-160	A	55	34	2.9	73	11	Y160M1-2	11	Y160M1-2	15	Y160M2-2	30	8	1.6	70	1.5	Y90L-4	2.2	Y100L1-4	3	Y100L1-4
	B	50	30			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	26	7			1.1	Y90S-4	1.5	Y90L-4	2.2	Y90L-4
	C	46	26			5.5	Y132S1-2	7.5	Y132S2-2	1	Y160M1-2	24	6					1.1	Y90S-4	1.5	Y90L-4
	D	40	18			5.5	Y132S1-2	5.5	Y132S1-2	7.5	Y132S2-2	20	4					1.1	Y90S-4	1.1	Y90S-4
HCZ50-200	A	65	56	4	72	18.5	Y160L-2	22	Y180M-2	45	Y225S-2	34	14	1.5	70	3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	B	65	50			15	Y160M2-2	18.5	Y160L-2	37	Y200L2-2	32	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	C	50	40			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	30	10			1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
	D	40	32			7.5	Y132S2-2	11	Y160M1-2	15	Y160M2-2	24	7			1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
HCZ50-250	A	65	85	3	64	30	Y200L1-2	37	Y200L2-2	45	Y225M-2	34	21	1.1	59	5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
	B	60	80			30	Y200L1-2	37	Y200L2-2	45	Y225M-3	30	20			4	Y112M-4	5.5	Y132S-4	11	Y160M-4
	C	55	65			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	26	16			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	D	45	50			15	Y160M2-2	15	Y160M2-2	22	Y180M-2	24	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
HCZ50-315	A	80	140	5	60	75	Y280S-2	90	Y280M-2	10	Y315S-2	42	36	1.8	58	11	Y160M-4	11	Y160M-4	16	Y16OL-4
	B	75	135			55	Y250M-2	75	Y280S-2	110	Y315S-2	42	32							16	Y16OL-4
	C	70	110			45	Y225M-2	75	Y280S-2	90	Y280M-2	40	26							11	Y160M-4
	D	65	85			37	Y200L2-2	45	Y225M-2	75	Y280S-3	36	20							11	Y160M-4
HCZ65-160	A	100	32	3	74	15	Y160M2-2	18.5	Y160L-2	30	Y200L2-2	50	8	1.5	68	2.2	Y100L1-4	3	Y100L2-4	4	Y1112M-4
	B	90	32			15	Y160M2-2	18.5	Y160L-2	22	Y180M-2	48	7					3	Y100L2-4	4	Y1112M-4
	C	90	24			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	46	6					2.2	Y100L1-4	3	Y100L2-4
	D	80	14			5.5	Y132SI-2	7.5	Y132S2-2	11	Y160M1-2	38	4					2.2	Y100L1-4	3	Y100L2-4
HCZ65-200	A	100	54	3.3	73	22	Y180M-2	30	Y200L1-2	37	Y200L2-2	50	13	1	73	4	Y112M-4	4	Y112M-4	5.5	Y132S-4
	B	90	50			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	46	12			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	C	90	40			18.5	Y160L-2	22	Y180M-2	30	Y200L1-2	42	10			3	Y100L2-4	3	Y100L2-4	4	Y112M-4
	D	70	30			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	36	7			2.2	Y100L1-4	2.2	Y100L1-4	3	Y100L2-4
HCZ65-250	A	115	85	3.4	71	45	Y225M-2	55	Y250M-2	90	Y280M-2	54	21	0.9	67	11	Y160M-4	11	Y160M-4	11	Y160M-4
	B	115	75			45	Y225M-2	55	Y250M-2	75	Y280S-2	50	20			5.5	Y132S-4	11	Y160M-4
	C	100	65			37	Y225M-2	45	Y225M-2	55	Y20M-2	46	16			4	Y112M-4	5.5	Y132S-4
	D	80	50			30	Y200L1-2	30	Y200L1-2	37	Y200L2-2	40	10			4	Y112M-4	4	Y112M-4	6.5	Y132S-4
HCZ65-315	A	135	135	5.5	66	90	Y280M-2	110	Y315S-2	160	Y315M2-2	64	32	1.3	62	11	Y160M-4	15	Y160L-4	18.5	Y180M-4
	B	130	125			90	Y280M-2	110	Y315S-2	160	Y315M2-2	61	30					15	Y160L-4	18.5	Y180M-4
	C	115	115			75	Y280S-2	90	Y280M-2	132	Y315M1-2	56	28					11	Y160M-4	15	Y160L-4
	D	110	100			55	Y250M-2	75	Y280S-2	110	Y315S-2	54	24							15	Y160L-4
	E	90	85			45	Y225M-2	55	Y250M-2	75	Y280S-2	50	20			5.5	Y132S-4			11	Y160M-4
	F	75	70			30	Y200L1-2	45	Y225M-2	55	Y250M-2	52	16			5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
HCZ80-160	A	170	30	4.2	76	22	Y180M-2	30	Y200L1-2	37	Y200L2-2	75	8	2.2	70	3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	B	160	26			18.5	Y160L-2	22	Y180M-2	30	Y200L1-2	70	7			3	Y100L2-4	3	Y100L2-4	4	Y112M-4
	C	150	22			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	70	5			2.2	Y100L2-4	3	Y100L2-4	4	Y112M-4
	D	130	16			11	Y160M1-2	15	Y160M2-2	18.5	Y160L-2	65	4			2.2	Y100L1-4	2.2	Y100L1-4	2.2	Y100L1-4
HCZ80-200	A	150	50	3.8	79	37	Y200L2-2	45	Y225M-2	55	Y250M-2	80	12	1.9	73	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	140	46			30	Y200L1-2	37	Y200L2-2	55	Y250M-2	75	11			4	Y112M-4	5.5	Y132S-4	11	Y160M-4
	C	130	38			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	65	9			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	D	110	26			15	Y160M2-2	18.5	Y160L-2	30	Y200L1-2	60	6			3	Y100L2-4	3	Y200L2-4	4	Y112M-4
HCZ80-250	A	190	80	5	80	75	Y280S-2	90	Y280M-2	110	Y315S-2	90	20	1.3	78	11	Y160M-4	11	Y160M-4	15	Y160L-4
	B	180	75			55	Y250M-2	75	Y280S-2	110	Y315S-2	90	19
	C	170	70			45	Y225M-2	75	Y280S-2	90	Y280M-2	85	17
	D	150	55			37	Y200L2-2	55	Y250M-2	75	Y280S-2	75	14			5.5	Y132S-4			11	Y160M-4
	E	130	47			30	Y200L1-2	37	Y200L2-2	55	Y250M-2	70	32			5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
HCZ80-315	A	200	130	5.5	76.5	110	Y315S-2	160	Y315M2-2			100	32	1.3	72.5	15	Y160L-4	18.5	Y180M-4	30	Y200L-4
	B	180	125			110	Y315S-2	132	Y315M1-2			95	30					18.5	Y180M-4	30	Y200L-4
	C	160	100			75	Y280S-2	90	Y280M-2	132	Y315M1-2	85	24					15	Y160L-4	18.5	Y180M-4
	D	150	75			55	Y250M-2	75	Y280S-2	90	Y280M-2	70	18					15	Y160L-4	15	Y160L-4
HCZ80-400	A											105	52	1.2	63	30	Y200L-4	37	Y225S-4	55	Y250M-4
	B											100	50					37	Y225S-4	55	Y250M-4
	C											90	44					30	Y200L-4	45	Y225M-4
	D											80	38			18.5	Y180M-4	30	Y200L-4	37	Y225S-4
	E											75	30			18.5	Y180M-4	18.5	Y180M-4	30	Y200L-4
HCZ100-200	A	220	45	4	81	45	Y225M-2	55	Y250M-2	75	Y280S-2	115	11	1.2	80	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	200	40			30	Y200L1-2	45	Y225M-2	55	Y250M-2	100	10					11	Y160M-4	11	Y160M-4
	C	180	30			22	Y180M-2	30	Y200L1-2	45	Y225M-2	90	8					5.5	Y132S-4	5.5	Y132S-4
	D	150	25			22	Y180M-2	30	Y200L1-2	37	Y200L2-2	80	6					5.5	Y132S-4	5.5	Y132S-4
HCZ100-250	A	280	75	4.9	81.5	90	Y280M-2	110	Y315S-2	160	Y315M2-2	130	20	1.2	75.5	15	Y160L-4	30	Y200L-4	30	Y200L-4
	B	250	70			75	Y280S-2	110	Y315S-2	132	Y315M1-2	130	18			11	Y160M-4	15	Y160L-4	30	Y200L-4
	C	230	55			55	Y250M-2	75	Y280S-2	110	Y315S-2	120	14					11	Y160M-4	15	Y160L-4
	D	200	40			37	Y200L2-2	55	Y250M-2	75	Y280S-2	100	10					11	Y160M-4	11	Y160M-4
HCZ100-315	A	270	135	5.5	75.5	160	Y315M2-2					132	32	1.5	72	30	Y200L-4	30	Y200L-4	37	Y225S-4
	B	250	130			132	Y315M1-2					120	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	C	230	100			110	Y315S-2	132	Y315M1-2			100	26			15	Y160L-4	15	Y160L-4	30	Y200L-4
	D	200	85			75	Y280S-2	110	Y315S-2	132	Y315M1-2	90	21			15	Y160L-4	15	Y160L-4	18.5	Y180M-4
HCZ100-400	A											150	50	2	70	45	Y225M-4	45	Y225M-4	75	Y280S-4
	B											140	48			30	Y200L-4	45	Y225M-4	55	Y250M-4
	C											120	40			30	Y200L-4	30	Y200L-4	45	Y225M-4
	D											100	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
HCZ125-250	A											200	20	2.2	84	18.5	Y180M-4	22	Y180L-4	30	Y200L-4
	B											200	18			15	Y160L-4	18.5	Y180M-4	30	Y2OOL-4
	C											190	14			11	Y160M-4	15	Y160L-4	22	Y180L-4
	D											160	10			11	Y160M-4	11	Y160M-4	15	Y160L-4
HCZ125-315	A											200	30	2	79	30	Y200L-4	37	Y225S-4	45	Y225M-4
	B											180	30			30	Y200L-4	30	Y200L-4	37	Y225S-4
	C											170	24			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	D											100	18			15	Y160L-4	18.5	Y180M-4	30	Y200L-4
HCZ125-400	A											220	50	2.2	74.5	55	Y250M-4	75	Y280S-4	90	Y280M-4
	B											200	48			45	Y225M-4	75	Y280S-4	75	Y280S-4
	C											180	46			37	Y225S-4	55	Y250M-4	75	Y280S-4
	D											170	42			30	Y200L-4	45	Y225M-4	55	Y250M-4
	E											150	36					30	Y200L-4	45	Y225M-4
	F											150	30					30	Y200L-4	37	Y225S-4
HCZ150-250	A											320	17	3.5	83	22	Y180L-4	30	Y200L-4	37	Y225S-4
	B											300	15			18.5	Y180L-4
	C											280	13			18.5	Y180L-4
	D											260	12			15	Y160L-4	18.5	Y180M-4	18.5	Y200L-4
	E											240	11			11	Y160M-4	15	Y160L-4	15	Y180L-4
HCZ150-315	A											380	30	3	82.5	45	Y225M-4	75	Y280S-4	90	Y280M-4
	B											340	26			37	Y225S-4	45	Y225M-4	75	Y280S-4
	C											320	20			30	Y200L-4	37	Y225S-4	55	Y250M-4
	D											300	17			22	Y180L-4	30	Y200L-4	37	Y225S-4
HCZ150-400	A											400	48	4.3	80	75	Y250M-4	110	Y315S-4	132	Y315M1-4
	B											340	40			55	Y225M-4	75	Y280S-4	110	Y315S-4
	C											300	34			45	Y225S-4	75	Y280S-4	90	Y280M-4
	D											260	28			37		45	Y225M-4	75	Y280S-4
HCZ150-500	A											420	80	2.5	78	132	Y315M1-4
	B											400	70			110	Y315S-4	160	Y315M2-4
	C											360	65			110	Y315S-4	132	Y315M1-4
	D											340	50			75	Y280S-4	110	Y315S-4	132	Y315M1-4
	E											300	45			55	Y250M-4	75	Y280S-4	110	Y315S-4
HCZ200-250	A											600	12	3.5	85	30	Y200L-4	37	Y225S-4	55	Y250M-4
	B											540	11			22	Y180L-4	30	Y200L-4	45	Y225M-4
	C											500	10			22	Y180L-4	30	Y200L-4	37	Y225S-4
HCZ200-315	A											650	24	4	83.5	55	Y250M-4	75	Y280S-4	100	Y315S-4
	B											600	20			55	Y250M-4	75	Y280S-4	90	Y280M-4
	C											550	16			45	Y225S-4	45	Y250M-4	75	Y280S-4
	D											500	13			37	Y200L-4	37	Y225S-4	55	Y250M-4
HCZ200-400	A											650	52	3.5	84	132	Y315M1-4
	B											550	45			90	Y280M-4	132	Y315M1-4
	C											500	40			75	Y280S-4	110	Y315S-4	160	Y315M2-4
	D											450	30			55	Y250M-4	75	Y280S-4	110	Y315S-4
HCZ200-500	A											700	75	3	81.5
	B											650	65			160	Y315M2-4
	C											550	55			110	Y250M-4	160	Y315M2-4
	D											450	40			75	Y280S-4	110	Y315S-4	132	Y315M1-4
HCZ250-315	A											950	22	5	86	75	Y280S-4	110	Y315S-4	160	Y315M2-4
	B											900	20			75	Y280S-4	90	Y280M-4	132	Y315M1-4
	C											800	16			55	Y250M-4	75	Y280S-4	110	Y315S-4
	D
HCZ250-400	A											1000	44	6	83	160	Y315M2-4
	B											900	38			132	Y315M1-4
	C											850	30			110	Y315S-4
	D											800	24			90	Y280M-4	160	Y315M2-4
HCZ250-500	A											1200	80	6	85			110	Y315S-4	160	Y315M2-4
	B											1100	70
	C											1000	55
	D											850	45			160	Y315M2-4
HCZ300-400	A											1500	40	6	87
	B											140	30			160	Y315M2-4
	C											1300	25			132	Y315M1-4
	D											1300	20			110	Y315S-4	160	Y315M2-4
HCZ300-500	A											1700	70	6	83.5
	B											1500	60
	C											1300	50
	D											110	40
